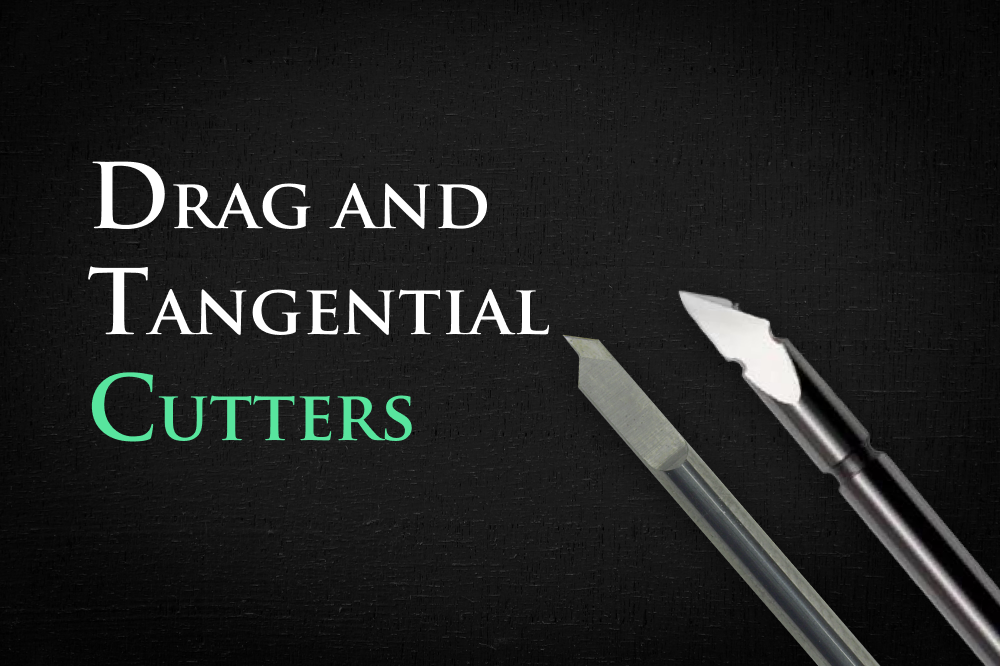

Difference between Drag and Tangential Cutters

The REAL Difference Between Summa True Tangential Cutters and Drag Knife (Tangential Emulation) Cutters

When it comes to precise cutting and professional sign creation, knowing the differences between various cutting tools is key to getting the best outcome. Summa True Tangential cutters and Drag Knife (Tangential Emulation) cutters are two popular options. At first glance, they might look alike, but the tech behind each is unique and can affect how your projects turn out. In this post, we'll explore the main differences between these two cutter types, so you can make a smart choice based on what you need.

1. Understanding True Tangential Cutters

Summa True Tangential Cutters are known for their precision and accuracy. This type of cutter is engineered to motorized blade control at all times, meaning the blade is never “dragged” through a direction change.  Here's a closer look at how True Tangential cutters work:

  • Blade Orientation: In a True Tangential cutter, the blade is always being oriented with motorized control and never free swiveling, regardless of the direction of the cutter's movement. This means that the blade doesn't drag through any intricate corners or curves, which ensures clean, accurate cuts, especially on intricate designs and materials with varying thicknesses.
  • Cut Quality: Because of the motorized blade control, True Tangential cutters can handle complex cuts with sharp corners and tight curves without deforming the material. This is particularly advantageous for cutting vinyl, reflective materials, and other challenging substrates.
  • Operational Mechanism: True Tangential cutters use a specialized mechanism to adjust the blade's angle dynamically, maintaining consistent pressure and precision throughout the cut. This mechanism allows for smooth and exact performance, which is ideal for professional applications where detail is paramount.

2. Exploring Drag Knife (Tangential Emulation) Cutters

On the other hand, Drag Knife (Tangential Emulation) Cutters simulate tangential cutting through a different mechanism. Here's how they differ:

  • Blade Orientation: Drag Knife cutters work by dragging the blade along the material. The blade is mounted with a slight offset from the holder and is dragged across the surface, following the contour of the cut. While this method can emulate tangential cutting to a degree, the blade isn't controlled by a separate motor thus the blade can’t be reoriented for tight corners without dragging through the material to change the blade direction.
  • Cut Quality: While Drag Knife cutters can handle basic cutting tasks and are generally more affordable, they may struggle with complex designs or materials that require high precision. The angle of the blade can cause issues with sharp corners or tight curves, leading to potential inaccuracies or material distortion.
  • Operational Mechanism: Drag Knife cutters rely on software and vinyl movement motor control to simulate tangential cutting by adjusting the speed and direction of the blade's movement. Although this method can achieve satisfactory results for simpler projects, it may not match the level of precision offered by Summa True Tangential cutters.

3. Key Differences

To summarize the key differences between Summa True Tangential cutters and Drag Knife (Tangential Emulation) cutters:

  • Precision: Summa True Tangential cutters offer superior precision utilizing fully motorized control of the blade orientation while cutting, while Drag Knife cutters simulate this precision but may fall short in highly detailed applications.
  • Cut Quality: True Tangential cutters excel in producing clean, accurate cuts on intricate designs and varied materials. Drag Knife cutters are adequate for less complex projects but can struggle with sharp turns and thicker or specialty substrates.
  • Cost: Generally, True Tangential cutters are more expensive due to their advanced technology and higher precision. Drag Knife cutters are more budget-friendly but may require more frequent adjustments for optimal cut quality.

4. Choosing the Right Cutter for Your Needs

When deciding between a Summa True Tangential cutter and a Drag Knife cutter, consider the following:

  • Project Complexity: For highly detailed or complex designs, a True Tangential cutter will provide the accuracy and reliability needed to achieve professional results.
  • Material Type: If you work with a wide range of materials or require precise cutting on thicker substrates, a True Tangential cutter is likely the better choice.
  • Budget: If your projects are relatively simple and you need a cost-effective solution, a Drag Knife cutter can be a suitable option. However, for long-term investment and superior performance, a True Tangential cutter offers greater value.

Conclusion

Summa True Tangential cutters and Drag Knife (Tangential Emulation) cutters both play a role in cutting technology. Your choice between them hinges on what you need, how much you can spend, and how complex your projects are. By understanding the real differences between these cutters, you can make an informed decision that aligns with your professional requirements and ensures the best possible results.
